Material Standard
|
GB : T2 Copper with Min. 99.9%

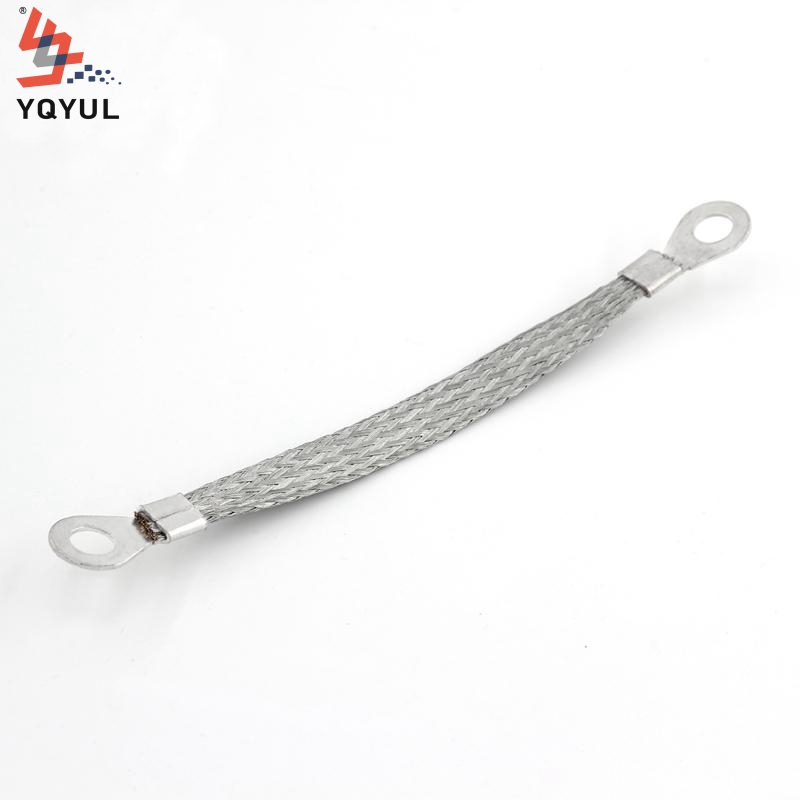

DIN: E-Cu58 (Number: 2.0065) EN: Cu-ETP ( Number: CW004A) ISO: Cu-ETP UNS: C11000 JIS: C1100 BS: C101 Other Material also can be customized The joints at both ends are crimped with high-quality copper pipes or Copper Lug Terminals.
|
|
Copper Diameter
|
0.15mm (conventional), can be customized 0.05, 0.07, 0.10, 0.12, 0.19, 0.20, 0.25, 0.39mm and other copper braided wires. Note:
The thinner the copper wire, the softer the product, and vice versa. |
|
Surface Treatmentz
|
Copper braid part:Copper braided wire can be divided into bare copper and tin plated. Copper connection at both ends: can be silver plated, tin plated, zinc plated, nickel plated, gold plated.
|
|
Salt Spray Testing
|
In a neutral environment, nickel can bear 240 hours. Silver is lower, tin is lowest
|
|
Bending Testing
|
Bend 10000 times in 15 radian angle without breakage or fracture.
|
|
Conventional copper braided wire cross-sectional area:
|
single layer 1.5mm2—150mm2 (multi-layer braided wire can be customized,
stacking up to 30,000 square meters) |
